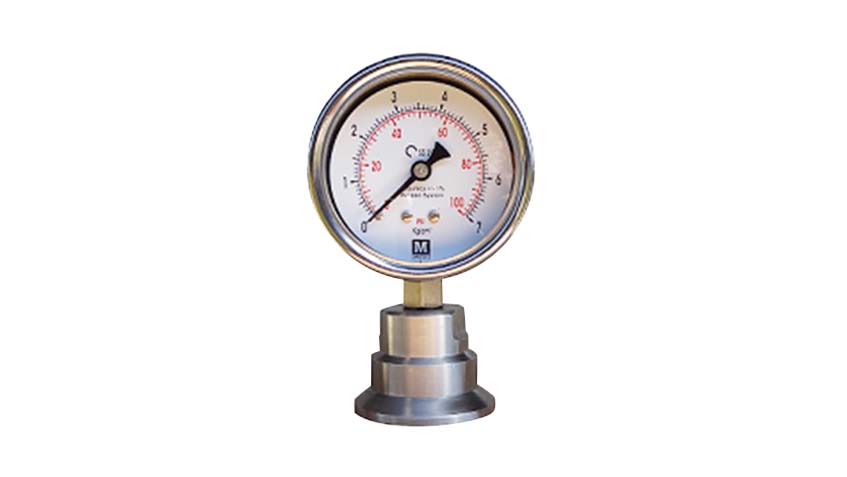

Hygiene gauge
Mahalaxmi Instruments offer "MASTER" make Hygiene sealed gauges are designed for systems needing contact surface that are rigorously cleaned and totally safe.
The function of diaphragm is to isolate the pressure gauge from the process fluid, preventing bacteria developing inside pressure gauges sensing element.
The advantage of the flush diaphragm gauges is easy to clean and quick release coupling.
Specifications
| Dial Sizes | 63mm, 100mm |
| Accuracy | +1.6% to 2% F.S.D |
| Ranges | Std. Ranges from 0-2 upto 40 bar or kg/cm2 (6000 psi) & Compound Range |
| Case & Ring | SS 304, SS 316 ( Pressed type / Byonet type ) |
| Socket | SS 316, SS 316L |
| Sensing Element | Diaphragm ( SS 316 Teflon Coated / Tantalum / Hastealloy C / Titanium ) |
| Bourdon Tube | SS 316, SS 316L |
| Movement | SS 304 |
| Wetted Parts | SS 304, SS 316 |
| Internal Fill Fluid | Silicon Oil Upto 170 deg C |
| OverPressure Limit | 1.3 times of Full Scale Pressure |
| Joints | Arc Argon welded |
| Window | Plexiglass |
| Pointer | Micro zero adjustable, Plain Pointer |
| End Connection | 1-1/2" or 2" |
| Mounting | Direct Bottom Entry, Back Entry |
| Options Available | Glycerin Filling
Customized Dials - scales, ranges, OEM logos |
Application
- Petrochemical
- Pulp & Paper
- Food Processing
- Chemical
- Electric power plants
- Water & sewage treatment plants
